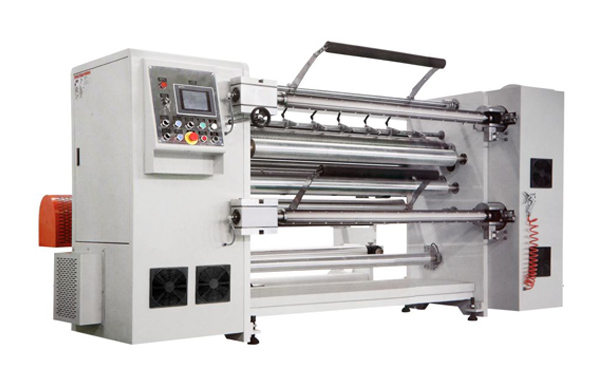

ZLFQ-A Automatic Slitting Machine

Device description:
independent unwinding frame, automatic tension when rewind and unwind, PLC control, human-computer interface input.

Optional device:
Differential slip shaft for rewinding shaft-less unwinding frame, circular cutter slitting.

Main Technical Parameters:

Type	ZLFQ-A900	ZLFQ-A1100	ZLFQ-A1300	ZLFQ-A1500
Application material	Plastic film,composite film,paper and other drum shape material
Max.Width of Mother Roll	900mm	1100mm	1300mm	1500mm
Max.unwinding Diameter	Φ800mm	Φ800mm	Φ800mm	Φ800mm
Thickness of material	0.012-0.15mm	0.012-0.15mm	0.012-0.15mm	0.012-0.15mm
Max. Rewinding diameter	Φ500mm	Φ500mm	Φ500mm	Φ500mm
Width of Final Roll	50-800mm	50-1000mm	50-1200mm	50-1400mm
Max.Slitting Speed	200m/min	200m/min	200m/min	200m/min
