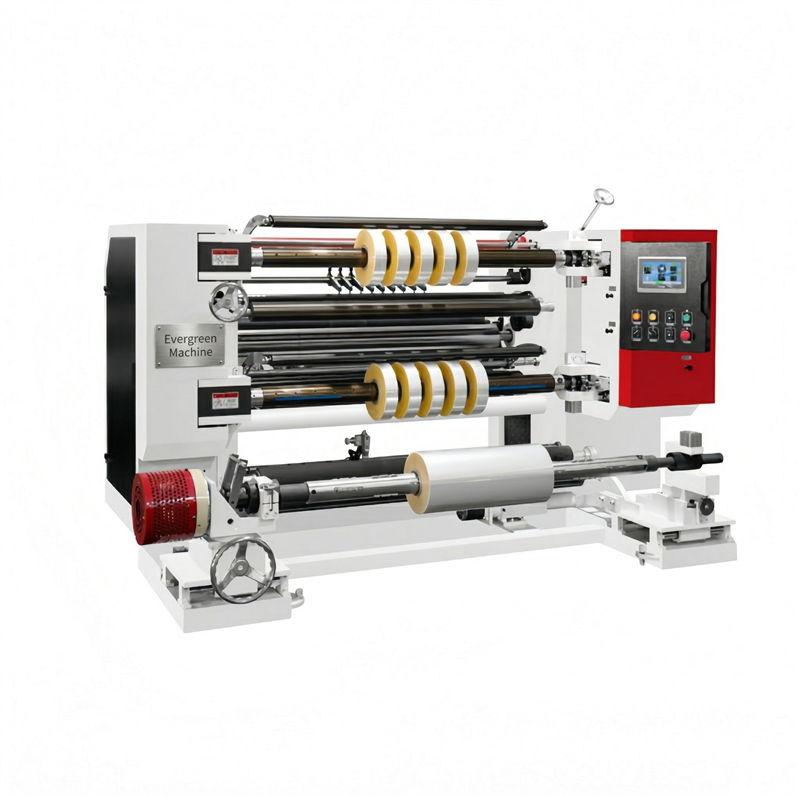

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production.
| Type | LFQ-700A | LFQ-1100A | LFQ-1300A |
| Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
| MAX.Diameter of Mother Roll | Dia600mm | Dia600mm | Dia600mm |
| Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
| Slitting and Rewinging Speed | 5-160m/min | 5-160m/min | 5-160m/min |
| Tolerance of EPC | more or less 0.5mm | 0.5mm | 0.5mm |
| Total Power | 2.7kw | 3.5kw | 3.5kw |
| Weight of Machine | 1200kg | 1500kg | 1800kg |
| Overall Dimension | 2000*1110*1400mm | 2400*1110*1400mm | 2600*1110*1400mm |
