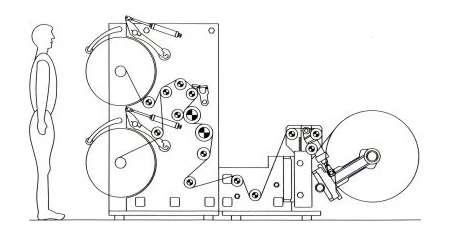

LFQ-E Digital Computer Control Hi-speed Plastic Film Slitting Machine
Feautre:
1.Unwinding width adjust automatic by hydraulic
2.Hydraulic automatic loading material
3.Material-collecting device
4.Paper core positioning technique(by laser)
5.Servo-drving technique/Vector frequency control
6.Section tension control technology
7.Change rewinding shaft automatic,decrease the stop time
8.Cutter positioning automatic
9.Automatic unloading system
10.Circle knife slitting mode
11.Expander roll
12.Dancing roll
13.6 inch rewinding mode
14.Counting stop
15.Easy tear on line
16.Air hole on line
17.Gap roll
Main Technical Parameters：
| Type | LFQ-E1300 | LFQ-E1500 |
| Max.Width of Mother Roll | 1300mm | 1500mm |
| Max.Diameter of Mother Roll | Φ800mm | Φ800mm |
| Thickness of material | 20-200μΜ | 20-200μΜ |
| Max. Rewinding diameter | Φ600mm | Φ600mm |
| Min. Width of Final Roll | 30mm | 30mm |
| Max.Slitting Speed (inverter control) | 300m/min | 300m/min |
| Max.Slitting Speed (servo motor control) | 500m/min | 500m/min |
