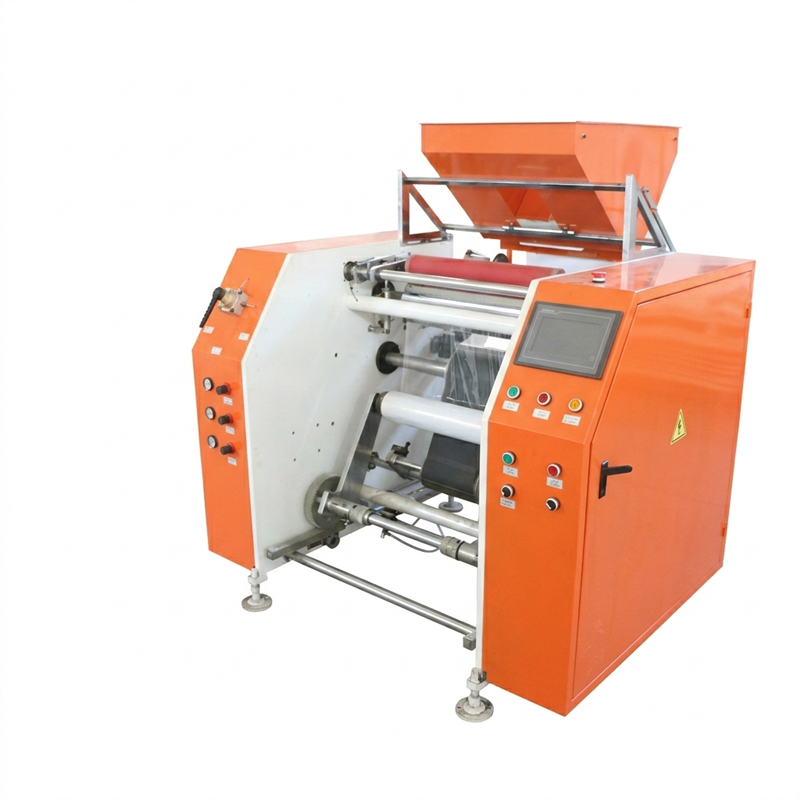

Full automatic machine designed for the repid rewinding of stretch film from jumbo roll into small rolls. The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.
Both for stretch & cling film rewinding.
1- Auto rewinding max. machine speed at 800 Mts/min
2- High production rate and quick change over
3- Fully automatic cycle with Programmable Logic Controller (PLC) control
4- Paper core to be ordered from 1-3 inch.
5- Free tension rewinding, No stretching occurs while rewinding
6- Guarding and controls CE approved
Model | AKDRW-500 | AKDRW-600 | AKDRW-700 |
Film width | 280-500mm | 280-600mm | 300-720mm |
Rewinding width | 280-500mm | 280-600mm | 300-720mm |
Max. diameter of Jumbo roll | 400mm | 400mm | 400mm |
Max. diameter of Rewinded roll | 300mm | 300mm | 300mm |
Rewinding speed | 900m/min | 900m/min | 900m/min |
Winder exchanging | Automatic | ||
Core size of unwinder | 3” | ||
Core size of rewinder | 1-3” |
