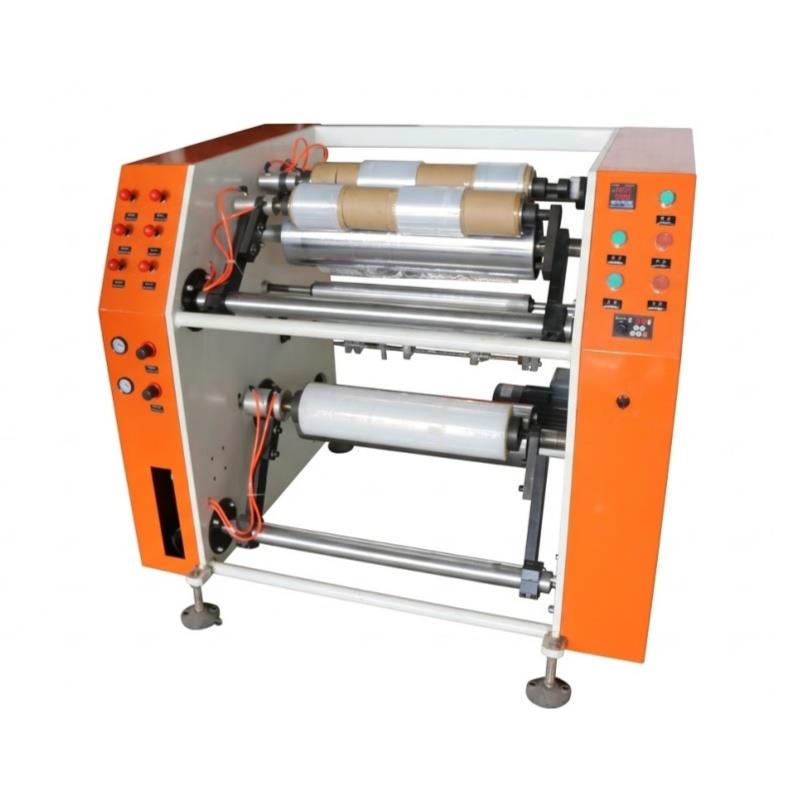

Stretch Film Rewinding Machine is a kind of multifunctional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.
Main Technical Parameters:
|
Model
|
KDRW-500
|
|
Width of finished product
|
500mm
|
|
Power of motor
|
1.5KW
|
|
Mechanical linear speed (max)
|
400 m/min
|
|
Roll Laying Mode
|
By hand
|
|
Diameter of parent roll(max)
|
400mm
|
|
Width of parent roll (max)
|
500mm
|
|
Core specification of parent roll
|
3"
|
|
Width of sub-roll
|
500mm
|
|
Diameter of sub-roll (max)
|
300mm
|
|
Core speciation of sub-roll
|
3" , 2"
|
|
Dimensions (L*W*H)
|
1.4*1.1*1.1m
|
|
Weight
|
700 Kg
|
