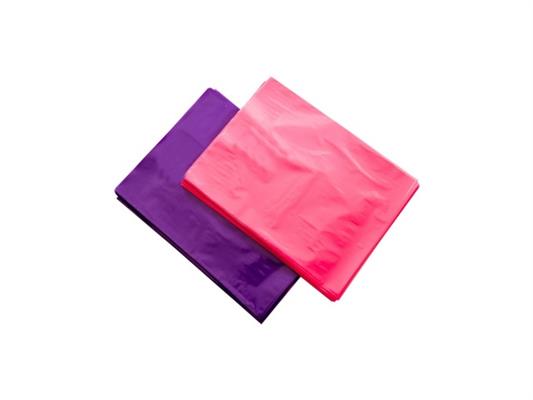

1.Plastic bag making machine is suitable for high density polyethylene (HDPE), the low density gathers alkene (LDPE) plastic film material.which is produces the plastic film to flat bag,
2. the performance of Plastic bag making machine is stable, the back cover is reliable, is the large, medium and small processed foods enterprise is most economical appropriately, bag sealing&cutting system equipment.
Plastic bag making machineTechnical Parameter:

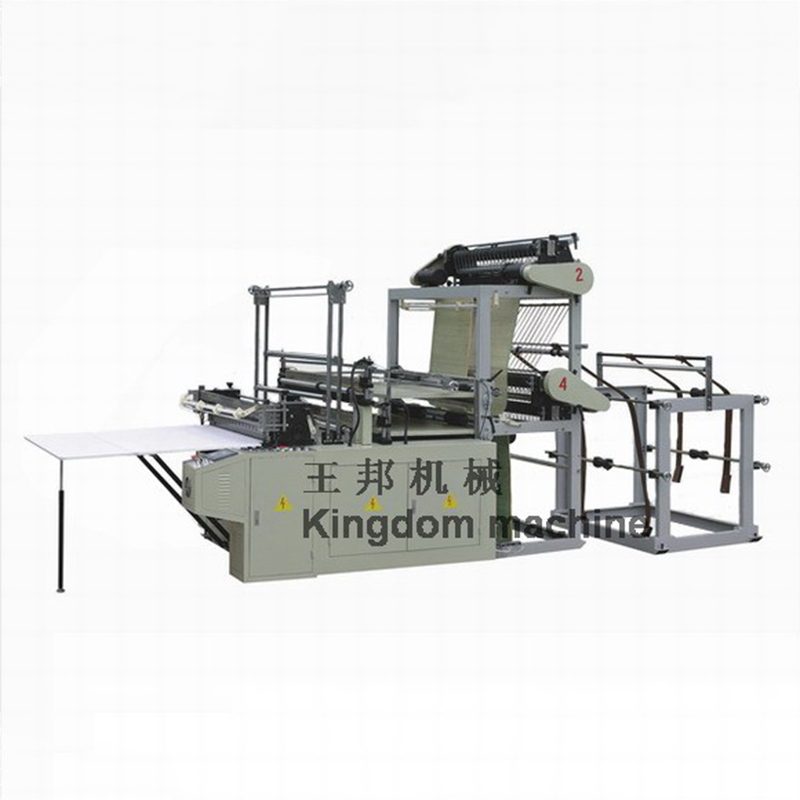

Model | SHXJ-A600 | SHXJ-A700 | SHXJ-A800 | SHXJ-A900 | SHXJ-A1000 |
width of sealing &cutting | 580 mm | 680 mm | 780 mm | 880 mm | 980 mm |
length of sealing & cutting | 700 mm | 1200 mm | 1200 mm | 1400 mm | 1600 mm |
speed of bag-making(pc/min) | 240-400 | 240-400 | 60-100 | 50-100 | 40-100 |
Number of strip(pc) | 4 | 4 | 2 | 1 | 1 |
Power of motor(kw) | 1.1 | 1.5 | 1.5 | 2.2 | 3 |
Weight(kg) | 700 | 850 | 900 | 1000 | 1100 |
Outine dimension(m) | 3.2*1.2*1.7 | 3.5*1.3*1.85 | 3.6 *1.5*1.95 | 3.7 *1.6 *2 | 3.8 *1.8*2.1 |
Video of Plastic Bag Machine
