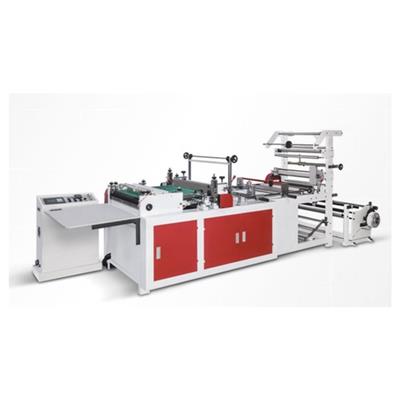

Side sealing Bag Making Machine is suitable for heat-sealing and heat cutting such materials as BOPP,OPP the rmal contracting films,etc.And it is a kind of ideal equipment for making socks bag,towel bag,bread bag and omament bag,etc. The machine has such characteristics as length flxing by computer,photoelectric tracking,stable performance(cast iron stuctrue) and high speed,etc.And has such functions as automatic gluing,automatic punching and lace heat-sealing,etc.
Main Technical Variables:
|
Model
|
RQL-600
|
RQL-800
|
RQL-1000
|
|
Width of sealing & cutting
|
580mm
|
780mm
|
980mm
|
|
Length of sealing &cutting
|
999mm
|
999mm
|
999mm
|
|
Speed of bag-making
|
40-240pc/min
|
40-240pc/min
|
40-240pc/min
|
|
Power of motor
|
3kw
|
7kw
|
10kw
|
|
Weight
|
700kg
|
850kg
|
950kg
|
|
Outline dimension (m)
|
3.6*1.2*1.7
|
3.6*1.4*1.7
|
3.6*1.6*1.7
|
