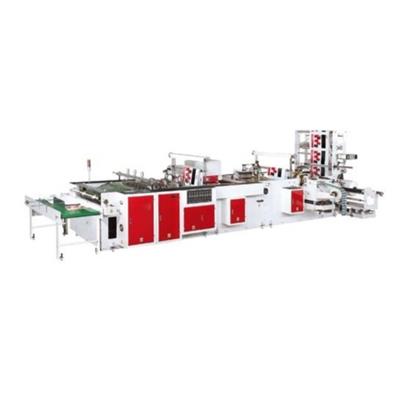

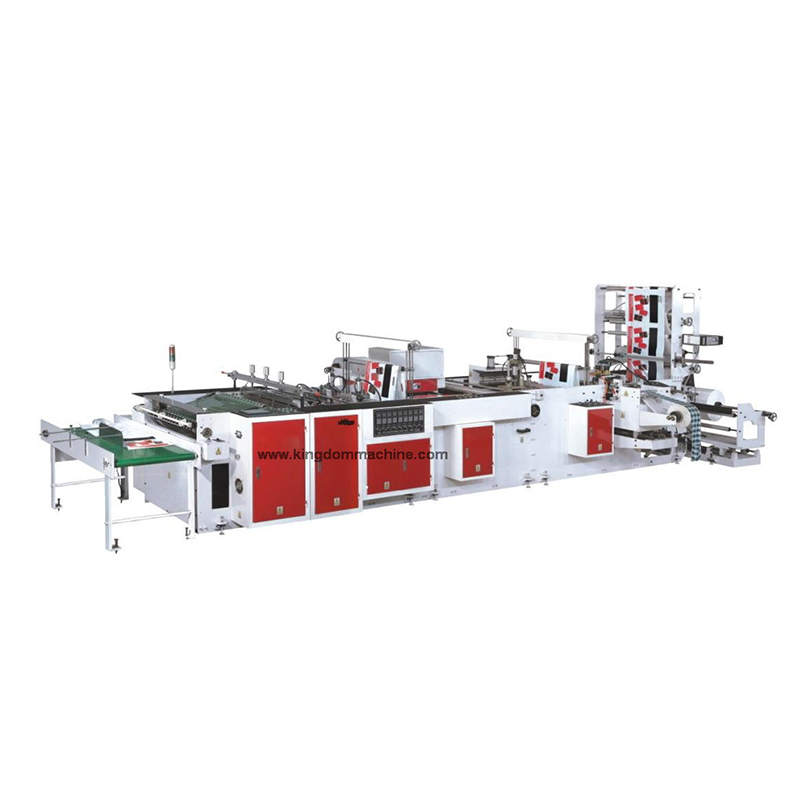

Patch Bag Handle Bag Multi function Making-bag Machine

Inquiry

Product Details

The whole machine adopts microcomputer control , with Panasonic servo motor control system. Arbitrary fixed-length, accurate and stable photoelectric tracking, stopping automatically when the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic counting, and can set count alarm. Automatic constant temperature, firm and smooth sealing.

Technical Parameter:

Model		RJHQ-800
Length of bag-making		250-730mm
Width of bag-making		250-600mm
Top-folding edge		50-75mm
Bottom gusseted		20-70mm
Speed of bag-making	Soft loop handle bag Patch handle bag Poly draw handle bag Die cut handle bag	60pcs/min 60pcs/min 70pcs/min 75pcs/min
Total power		13KW
Machine weight		3500kg
Machine dimension		820031001870mm
