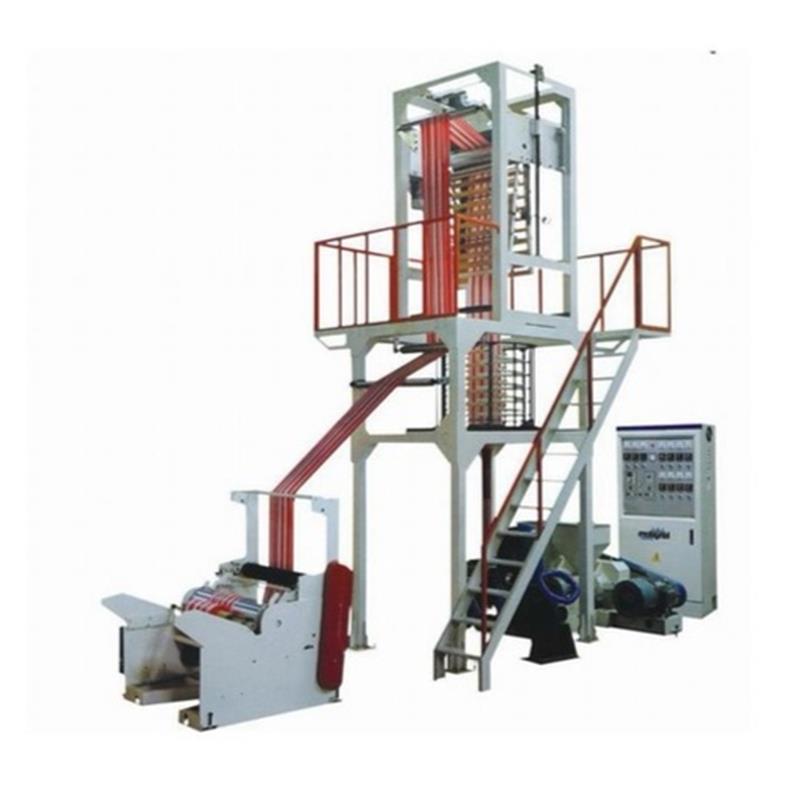

آلة فيلم لإنتاج بلاستيك البولي إيثيلين على شكل رول بلونين

Model

SJ-45 * 2 （600mm）

SJ-50 * 2 （800mm）

Diameter of Screw

Φ45* 2

Φ50 * 2

Max. Width of Folded Film(mm)

100-600

200-800

Single-face Thickness of Film(mm)

0.01-0.10

0.01-0.10

Max. Extrusion(kg/h)

35-40

50

Power of Main Motor(kw)

18.5

18.5

Power of Traction Motor(kw)

1.1

1.1

Heating Power(kw)

18

18

Overall Dimensions(mm)

4800* 1900* 4100

5500* 2100* 4700

Weight(T)

2.2T

2.5T

Material

LDPE,HDPE,recycle material

Film Color

Transparent,Black,Red,White,blue…bag color changed by masterbatch

Usage

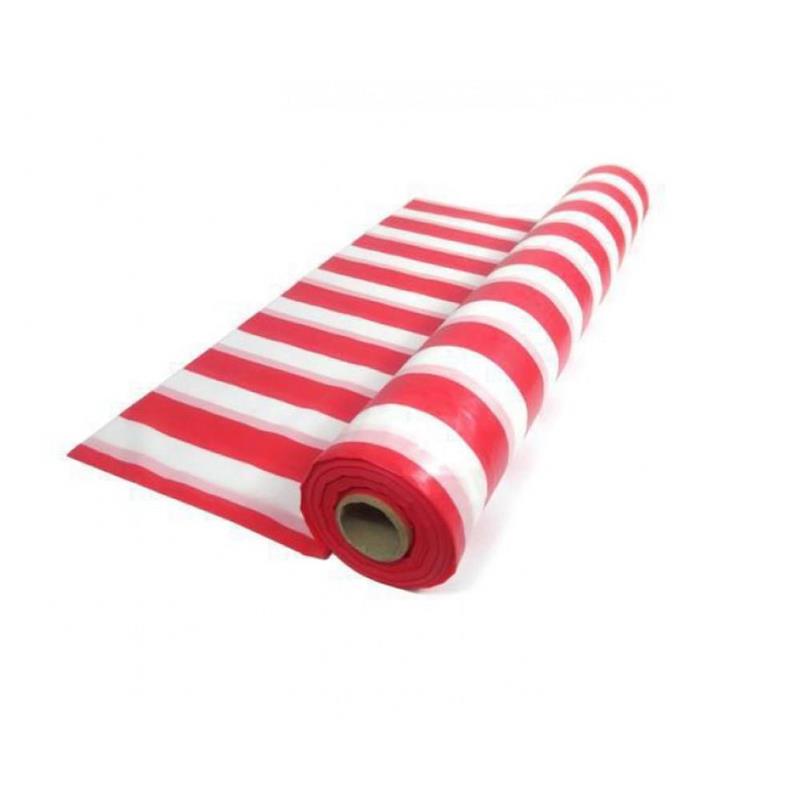

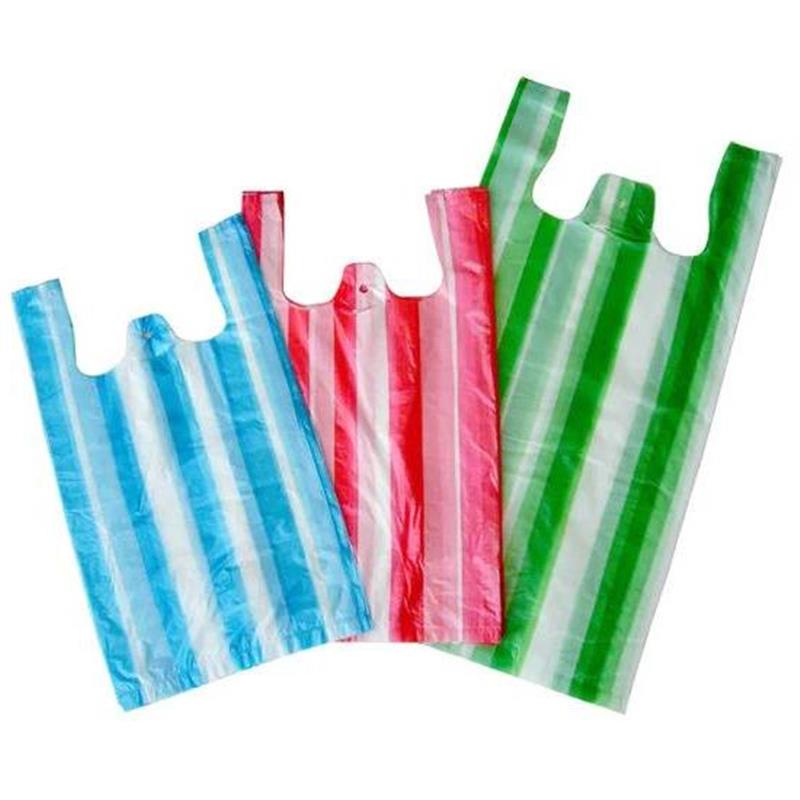

packing film,table cover,shrink film,plastic bag,water bag

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diamater

76mm

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
