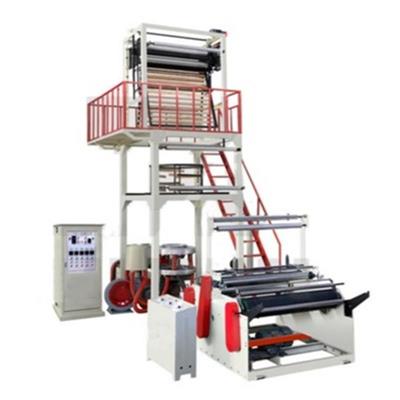

آلة نفخ الأفلام متصلة بآلة الطباعة الفليكسوغرافية

Model

SJ50-YT2600

SJ50-YT2800

SJ60-YT21000

Materials

LDPE.HDPE.LLDPE

LDPE.HDPE.LLDPE

LDPE.HDPE.LLDPE

Max film width

600mm

800mm

1000mm

Max Printed film Width

560mm

760mm

960mm

Printing colors

2color

2 color

2color

Film Color

Transparent,Black,Red,White,blue…bag color changed by masterbatch

Usage

Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film

Screw Diameter

50mm

55m

60mm

Screw L/D Ratio

28:1

28:1

28:1

Extruder Motor

11Kw

15Kw

18.5Kw

Max Capacity

35kg/h

50Kg/h

65Kg/h

Film I lead DIA

φ60、φ 100

φ80、φ150

φ100、φ200

Film Width

600mm

800mm

1000mm

Film Thickness

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

Max Printing length

191-1200mm

191-1200mm

191-1200mm

Total Power

28Kw

32Kw

40kw

Machine Weight

3.5T

4T

5T

Machine Size

6000 x 2400 x 4000mm

6200 x 2600 x 4300mm

6400 x 2800 x 4800mm

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Paper Diameter

58mm,76mm

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas
