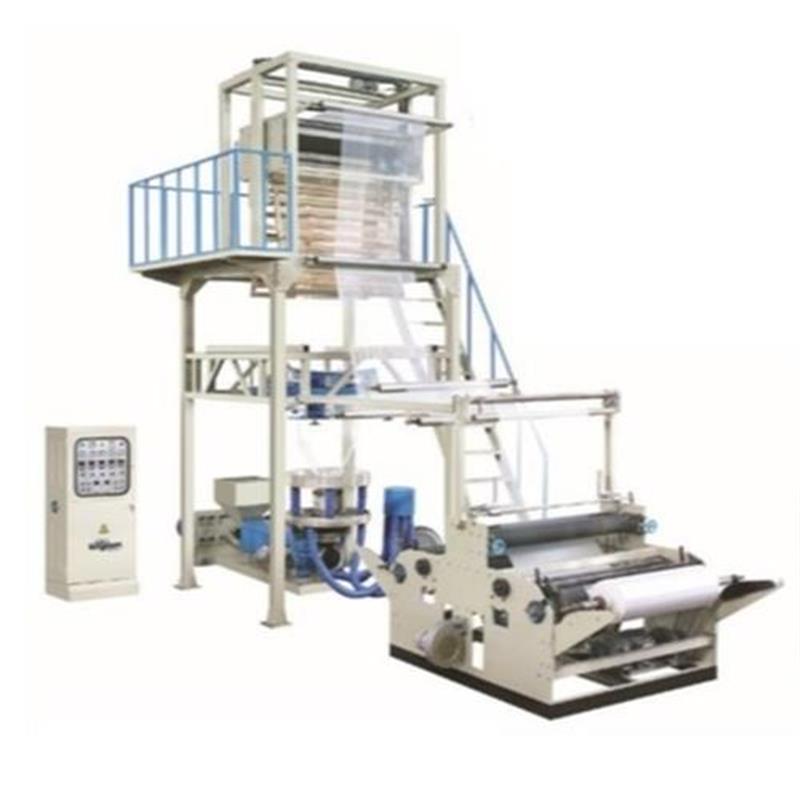

إنتاج آلة بثق الفيلم المنكمش

Model

SJ-B50

SJ-B55

SJ-B60

SJ-B65-1

Material

LDPE, LLDPE,HDPE,virgin raw material, recycled material,

CaCO3 compound,masterbatch and additives material

Film Color

Transparent,Black,Red,White,blue…bag color changed by Masterbatch

Usage

Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film

Diameter of screw

φ50

φ55

φ60

φ65

Reduced diameter of film

100-600 mm

200-800 mm

300-1000 mm

400-1200 mm

One side film Thickness

0.01-0.10 mm

Max.capacity (Kg/h)

35

50

65

80

Ratio of Screw L/D

28:1

28:1

28:1

28:1

Screw material

38CrMoAl

38CrMoAl

38CrMoAl

38CrMoAl

Power of main motor(kw)

7.5-11

11-15

18.5-22

22

Power of Traction

1.1 kw

1.1 kw

1.5 kw

1.5 kw

Heating Power(kw)

11

13

19

21

Delivery Day

30-45 days

30-45 days

30-45 days

30-45 days

Machine size (m)

4.8x1.9x3.8

5.5x2.1x4.6

6.5x2.3x5.2

6.5x2.5x5.2

Weight(T)

1.5T

2T

2.3T

2.6T

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm(3 inch)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Optional Devices

Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder

Technical Assistance

Engineers available to service machinery overseas
