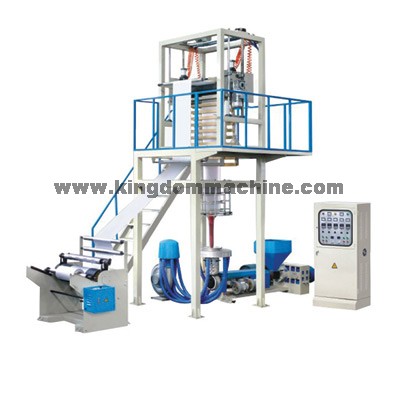

Film blowing machine:
In the film blowing machine,cylinder and screw are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Main Technical Parameter:
| Model | SJ-A50 | SJ-A55 | SJ-A65 | SJ-A65-1 |
| Diameter of screw | 50mm | 55mm | 65mm | 65mm |
| Diameter of film(mm) | 400-1200 | |||
| 100-600 | 200-800 | 300-1000 | ||
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| 80 | ||||
| Max.Extrusion(Kg/h) | 35 | 50 | 65 | |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 7.5-11 | 45611 | 18.5-22 | 22 |
| Power of Tracion main motor | 1.1kw | 1.1 kw | 1.5 kw | 1.5 kw |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Outline diameter(m) | 4.8*1.9 *3.5 | 5.5*2.1 *3.8 | 6.5*2.3 *4.2 | 6.5 *2.5*4.6 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
Optional Equipments:
1)Auto Loader
2)Air Compressor

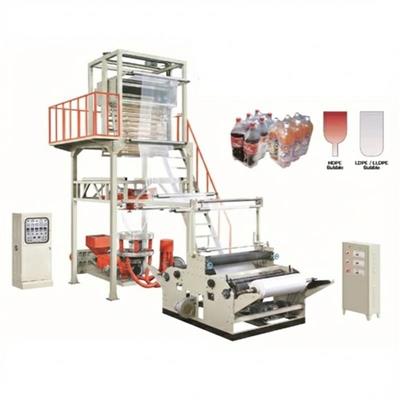

3)Rotary Die Head
4)Double Side Winder
5)Up and Down
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder
5)Up and Down
6)Embossing Cylinder
