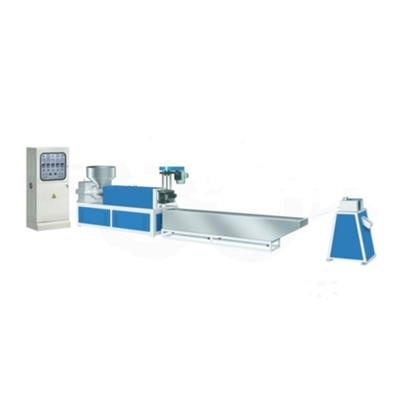

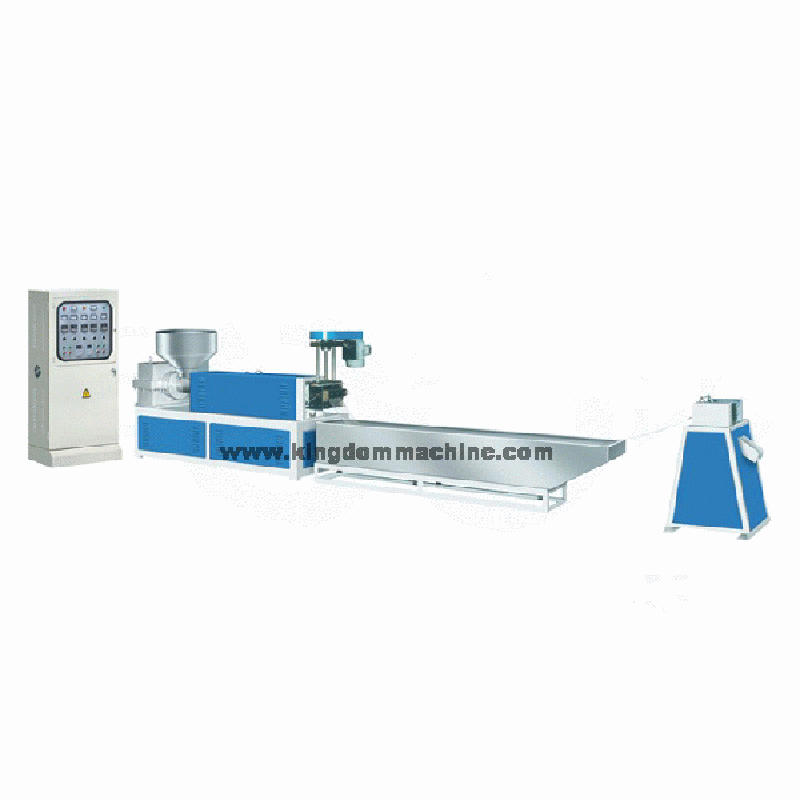

Plastic Recycling Machine is suitable for regeneration and granulation of waste plastics, as HDPE,LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
Main Technical Variables:
| Model | KD-B 90 | KD-B 100 | KD-B110 | KD-B120 |
| Diameter of Screw | 90mm | 100 mm | 110 mm | 120 mm |
| Major Diameter Ratio of Screw L/D | 20:1 -22:1 | 20:1 -22:1 | 20:1 -22:1 | 20:1 -22:1 |
| Rational Speed of Screw | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 22kw | 30kw | 37kw | 45kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of overall(kg) | 2000kg | 2100kg | 2200kg | 2500kg |
| Cover dimensions (m) | 8*1.2*1.8 | 8.2*1.6*1.8 | 8.5*1.6*1.8 | 8.8*1.6*1.8 |
