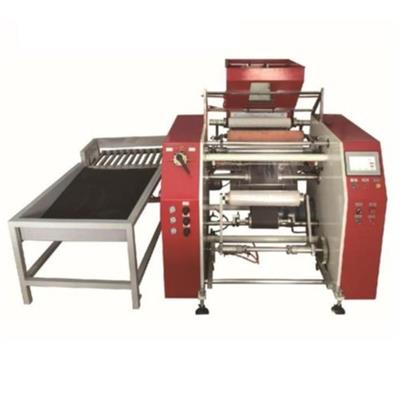

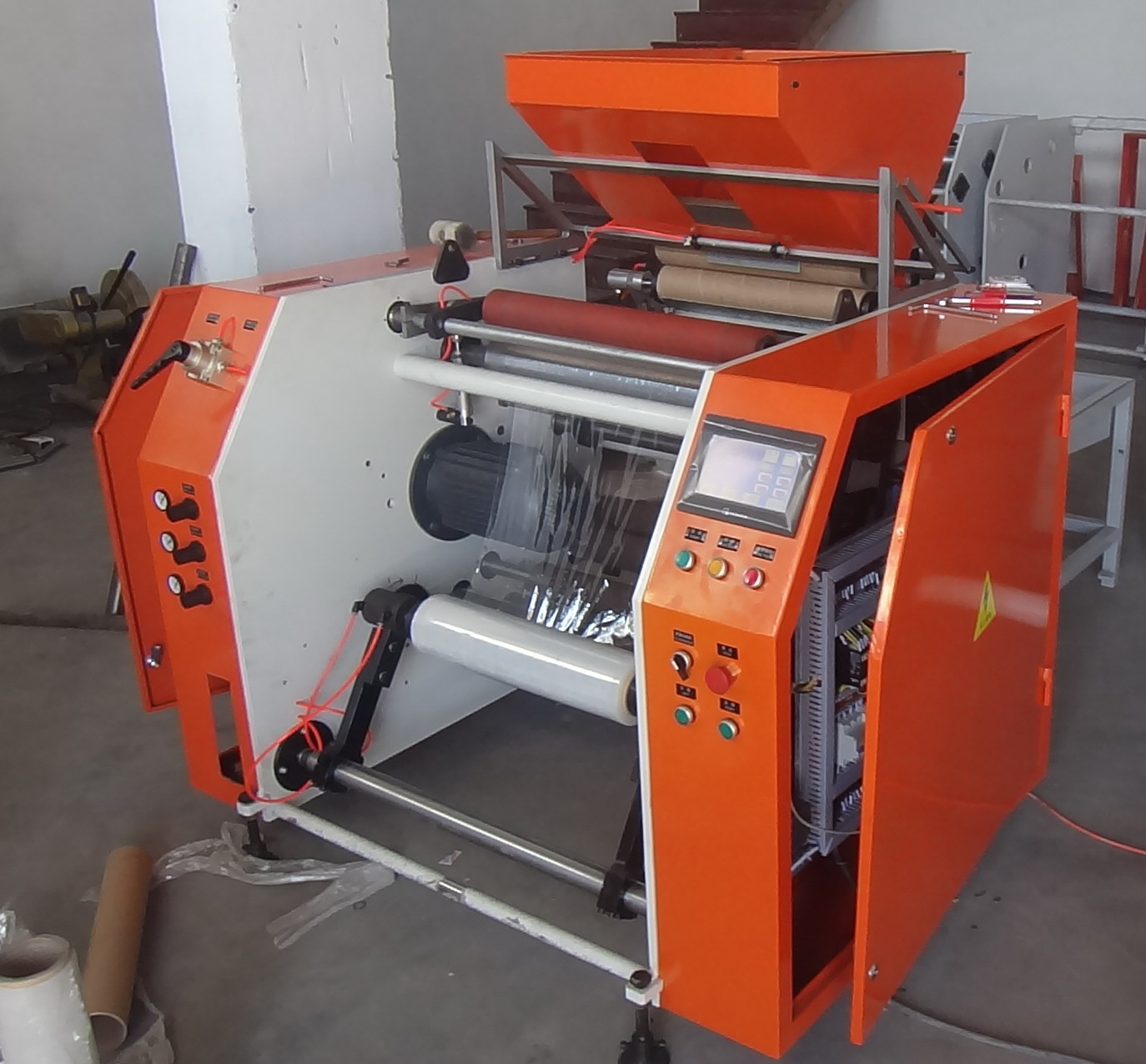

Automatic Stretch Film Rewinding Machine
Full automatic machine designed for the repid rewinding of stretch film from jumbo roll into small rolls.
The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.
Both for stretch & cling film rewinding.
1- Auto rewinding max. machine speed at 800 Mts/min
2- High production rate and quick change over
3- Fully automatic cycle with Programmable Logic Controller (PLC) control
4- Paper core to be ordered from 1-3 inch.
5- Free tension rewinding, No stretching occurs while rewinding
6- Guarding and controls CE approved
Model | AKDRW-500 | AKDRW-600 | AKDRW-700 |
Film width | 280-500mm | 280-600mm | 300-720mm |
Rewinding width | 280-500mm | 280-600mm | 300-720mm |
Max. diameter of Jumbo roll | 400mm | 400mm | 400mm |
Max. diameter of Rewinded roll | 300mm | 300mm | 300mm |
Rewinding speed | 900m/min | 900m/min | 900m/min |
Winder exchanging | Automatic | ||
Core size of unwinder | 3” | ||
Core size of rewinder | 1-3” | ||
Conveyor & stacker | Option device |
