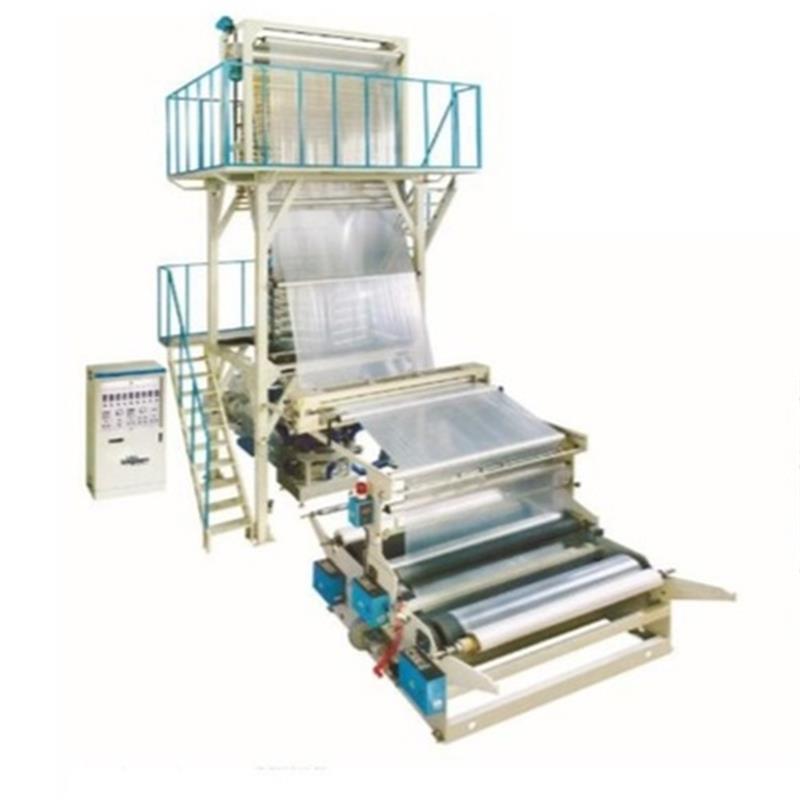

Ligne d'Extrusion de Film Par Gonflage
Model |
SJ-C75 |
SJ-C90 |
SJ-C105 |
SJ-C120 |
Screw Diameter |
75mm |
90mm |
105mm |
120mm |
Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
28:1 |
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of Main Motor |
37Kw |
45Kw |
55-70Kw |
75-95Kw |
Main Output |
120kg/h |
160kg/h |
190kg/h |
220kg/h |
Max. Folding Width of Film |
1500mm |
2000mm |
2200mm |
2500mm |
Single-sided Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Total Power |
46Kw |
60Kw |
78Kw |
95Kw |
Weight of Machine |
4T |
8T |
10T |
12T |
Overall Dimensions (m) |
5.2×2.8×6 |
6.2×3.4×8 |
6.2×4×9 |
6.8×4.5×10 |
