KD33-U-shape--tetra-pack-packing-machine

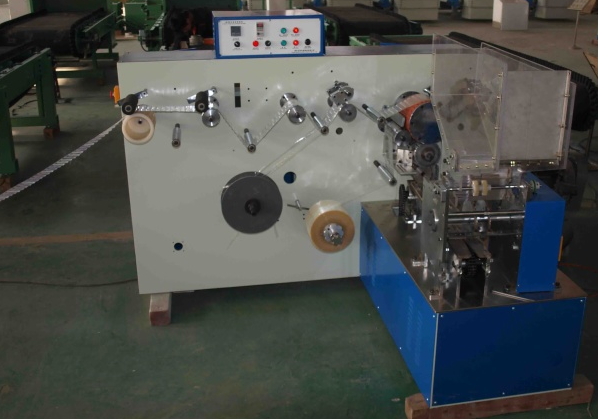

KD33 U-shape Tetra Pack Packing Machine

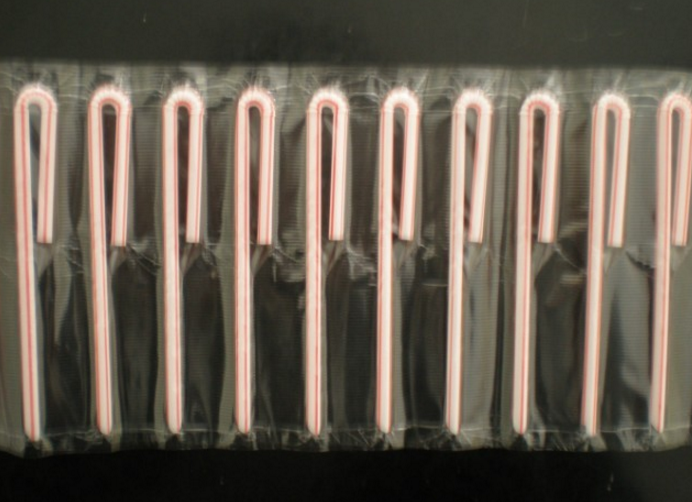

Model KD33 U-shape flexible straw auto packing machine is a straw machine that can bend flexible straws into U-shape and auto packing them into bags.

The machine is composed of driving motor, driven system, thin film rolling device, hopper, straw filling device, sealing device, It not only makes your straw packing operation easier, but also provides you with a high reliability.

KD33-U-shape--tetra-pack-packing-machine

TECHNICAL FEATURE

1.Single tetra straw packing,bending, fillingpacking at a time,

2.Automatic product counting,

3.Packing speed can be adjusted freely,

4.Special urgency safety buttons,



  SPECIFICATIONS

Capability

600~700pcs/min

Main motor

2.2 kW  (VFD)

Vacuum motor

0.75kW

Flotsam motor

0.25kW

Wrapping material

BOPP film

Width of film

95~160mm

Thickness of film

0.016~0.018mm

Specifications of straw

Diameter of straw

φ4.2mm

Thickness of straw

0.18~0.20mm

Length of U-shape model

90mm/105mm/128mm

Machine weight

2000KG

Dimension

1900mmW)×2000mm (L)

Other specifications are customizable
