Usage and features:

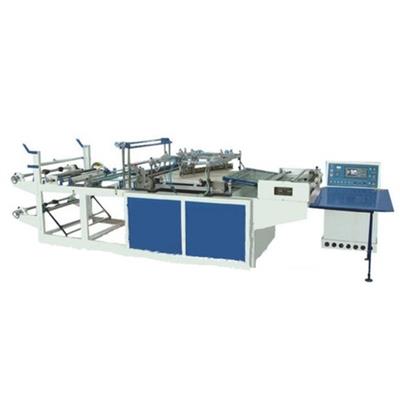

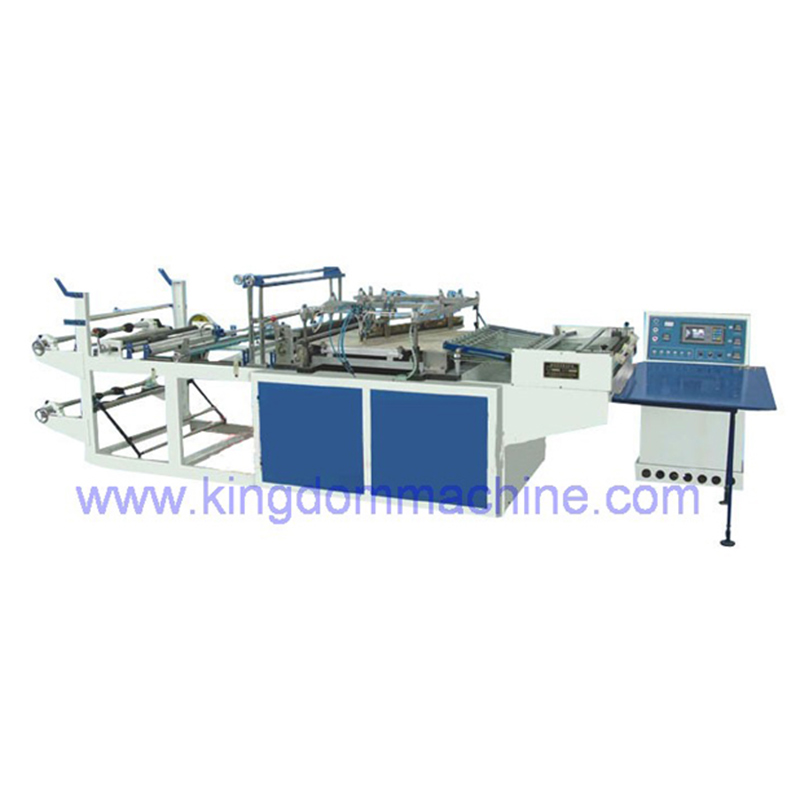

The machine is mainly used for making bags like flower bags, umbrella bags, tie bags and so on. It can produce arc bags with BOPP, PE and POF after it is reequipped.
Performance and allocations:
1)KDF400 is suitable for flower seedling bags and tap bags.
2)KDF600 is suitable for small-sized fresh flower seedling bags and grape bags.
3)KDF900 is suitable for large-sized fresh flower seedling bags, umbrella bags
and tie bags.
a)High sensitivity, photoelectric cells and accurate bag-making.
b)The stamping function is for your option.
c)Order for Machines with special functions accepted
d)Special size of bag order accepted
Main technical parameters
|
Model
|
KDF400
|
KDF600
|
KDF900
|
|
Power
|
220V
|
220V
|
220V
|
|
Total power
|
3.5KW
|
5.0KW
|
8.5KW
|
|
Bag-making Width
|
50-300mm
|
50-500mm
|
50-800mm
|
|
Bag-making Length
|
40-500mm
|
40-500mm
|
40-500mm
|
|
Bag-making Speed
|
30-160P/min
|
30-140P/min
|
30-120P/min
|
|
Weight
|
450kg
|
800kg
|
1000kg
|
|
Length of machine
|
3300mm
|
3600mm
|
3600mm
|
|
Width of machine
|
860mm
|
1140mm
|
1440mm
|
|
Height of machine
|
1225mm
|
1225mm
|
1225mm
|
