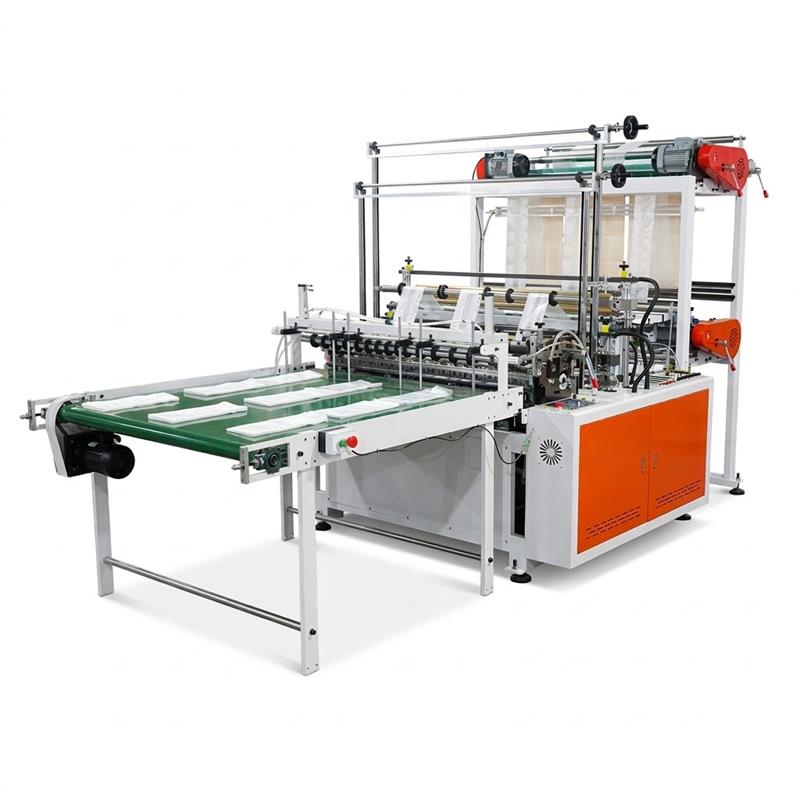

Six Lines Bag Making Machine



Features:

1.Computer control over the entire process.
2.From film roll to final bag, one process flow.
3.Servo motor, makes it easy to adjust the bag length and the production speed.
4.Automatic film feeding, coordination free from tension adjustment.
5.Automatically stop when film feeding blocks or bags jam.
6.High production efficiency to save manpower and time.
6.Equipment with heat sealing and cold cutting device.

Main Technical Parameter

Model
SHXJ-D1000
SHXJ-D 1200
SHXJ-D 1500
Width of Sealing & Cutting
980 mm
1180 mm
1480 mm
Length of Sealing & Cutting
2000 mm
2000 mm
2000 mm
Speed of Bag-making (pc/min)
(40-100) * 6
(40-100) * 6
(40-100) * 6
Number of Strip (pc)
6
6
6
Power of Motor (kw)
2.2
3
4
Weight (kg)
1.3
1.3
1.6
Outline Dimension
4.8*2.2*1.8m
4.8*2.2*2m
4.8*2.2*2.6m





Optional Equipment:

1) Servo Motor

2) Touch Screen PLC
