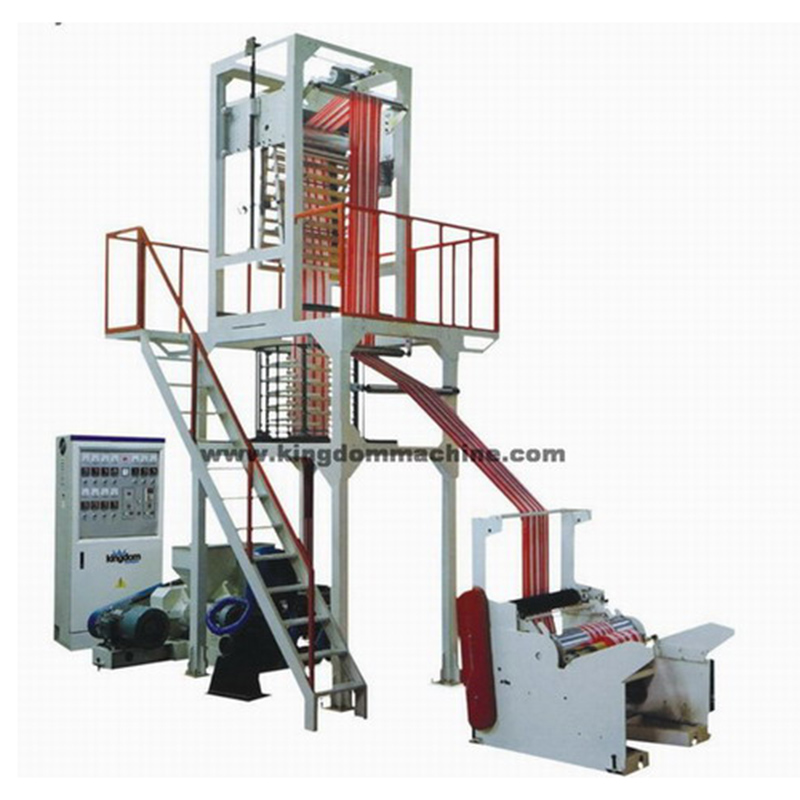

double layer blown film machine


Use:
Double layers film blowing machine is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid, printed base material, products for export and industrial products,etc

Double layers film blowing machine Characteristics:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.

Main Technical Parameter:
Model
2SJ-G50
2SJ-G55
2SJ-G60
Diameter of screw(mm)
50*2
55*2
60*2
L/D
28:1
28:1
28:1
Reduced diameter of film(mm)
800
1000
1200
Single-face Thickness of film(mm)
0.015-0.10
0.015-0.10
0.015-0.10
Max. Output(kg/h)
40
65
80
Power of main motor(kw)
11*2
15*2
18.5*2
Heating Power(kw)
26
30
42
Outline diameter(L)(m)
4.2*2.2*4
4.6*2.4*4.6
5*2.8*5
Weight(T)
4
5
6
