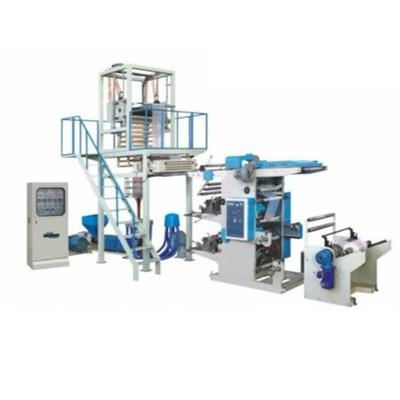

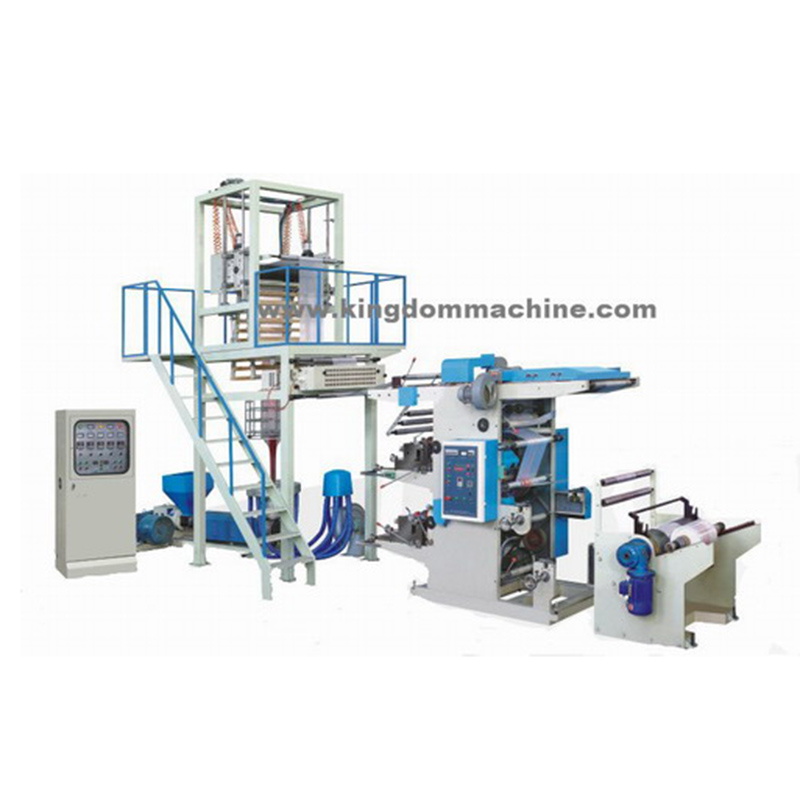

blown film machine connect flexo printing machine



The machinge body is chanel steel frame traction motor frequency with single rolling friction,lift up and down it is suitable for blowing high-low pressure polyethylene industral film and agricultural mulch film.It can be used for continuously printing various plastic films,cloths,thin leathers and package products,etc with one-sided and two-sided printing finished by once-through operation.


Technical Parameter:
Model
SJ50-YT2600
SJ55-YT2800
SJ65-YT21000
Material
LDPE.HDPE.LLDPE
Screw Diameter
50mm
55mm
65mm
Screw L/D
28:1
28:1
28:1
Motor Power
11Kw
15Kw
18.5Kw
Max Output
35kg/h
50Kg/h
65Kg/h
Die-Head Diameter
60 / 100
80 / 150
100 / 200
Max folding film Width
600mm
800mm
1000mm
Single-film Thickness
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Length of Printing
191-1200mm
191-1200mm
191-1200mm
Max Printing film Width
600mm
800mm
1000mm
Total Power
28Kw
32Kw
40kw
Weight
3.5T
4T
5T
Dimensions (mm)
6000*2400*4000
6200*2600 *4300
6400*2800*4800
