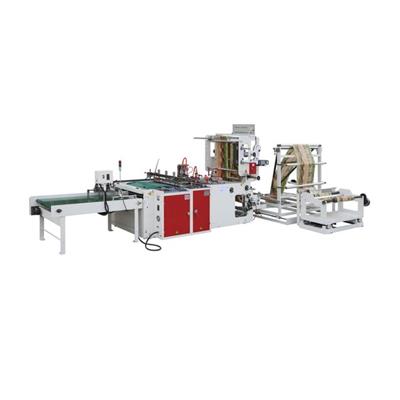

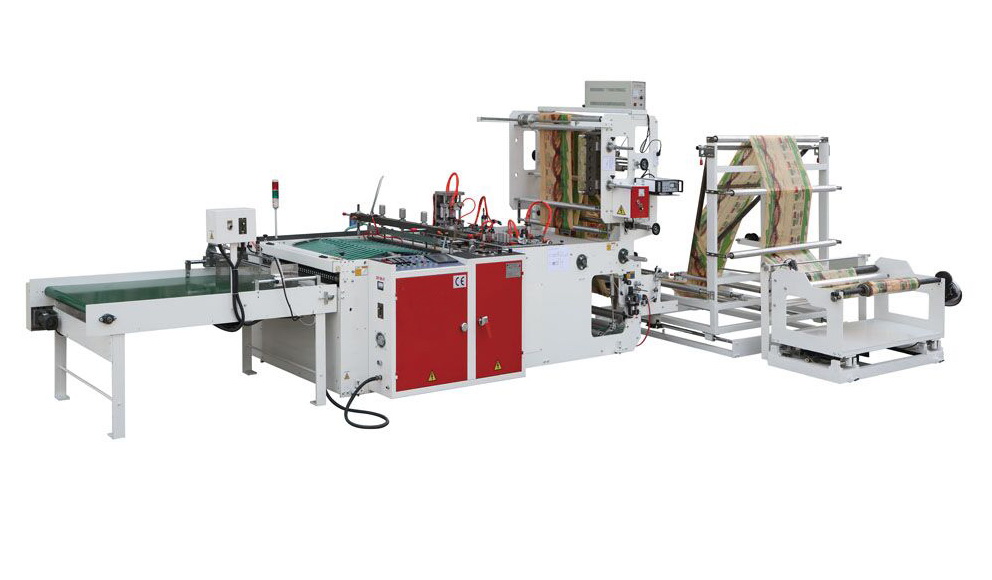

Economy type chicken bag making machine,excellent production technical and perfect chicken bag bottom.
Feature:
1. Special design bottom round wicketer bag making device.
2. Top folding continuous sealing device
3. Automatic stacking bag collect table.
4. Opp header bag device.
Optional device:
1)Sealing device for producing DHL bag
2)Bottom seal and double seal knife
3)Perforation line device
4)Adhesive tape adding device
Technical Parameter:
Type | HRQL | |
Length of bag making (height of bag) | 250-750mm | |
Width of bag making | 250-600mm | |
Speed of bag making | SIDE SEAL bag | 120pcs/min |
Die cut bag | 90pcs/min | |
Chicken bag | 100 pcs/min | |
OPP bag | 110pcs/min | |
Top folding | 50-75mm | |
Bottom Gusset | 20-60mm | |
Total power | 9.5KW | |
Machine weight | 2000kg | |
Machine dimension | 6500X2000X2100mm | |
Air comperssor | 5HP |
