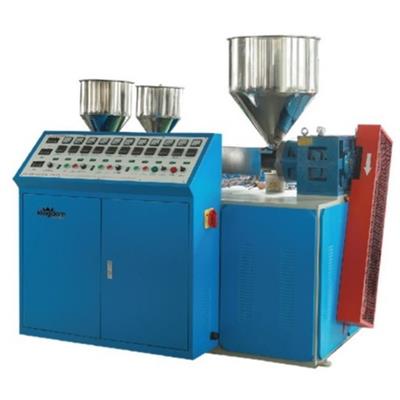

Tricolor Drink Straw Making Machine





 DESCRIPTION

This model is a tube extrusion line, composed of extruder and die ,Vacuum calibration and cooling unit,haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking straw,spiral strip straw,medical pipe, all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.
TECHNICAL FEATURE
1.       The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2.       Water bath in stainless steel can be adjusted in three planes ,
3.       The haul-off unit can be belt or rollers, it is customizable.
4.       Fitted with single or double rotary cutter .
SPECIFICATIONS

Model
KD-11
KD-12
KD-13
Parameter of main screw
φ50mm(diameter)
Parameter of sub- screw
0
1×φ25mm
2×φ25mm
Capability
25~35Kg/h
Power
supply
Main motor
11kW    380v    50Hz (VFD)
Sub motor
0
0.75kW×1
0.75kW×2
Haul-off motor
0.75kW×1(VFD)
Cutting motor
0.75kW×1(VFD)
Temp£®controller
5zone
8 zone
11 zone
Length of cooling container
2400mm/3400mm/4400mm
Specifications
diameter:φ2~14mm   thickness:0.05~1mm
Other specifications are customizable
