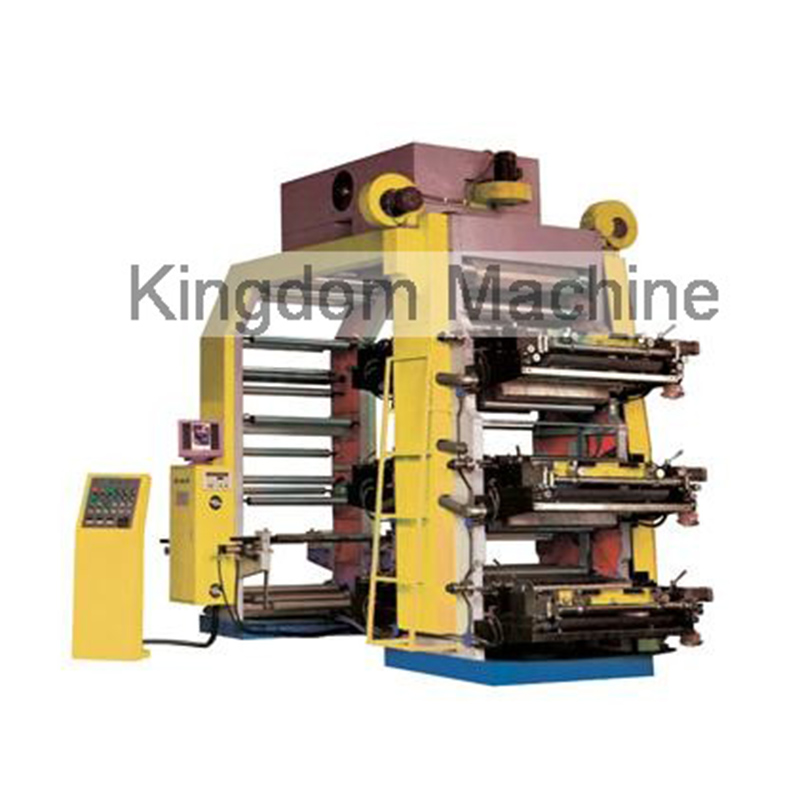

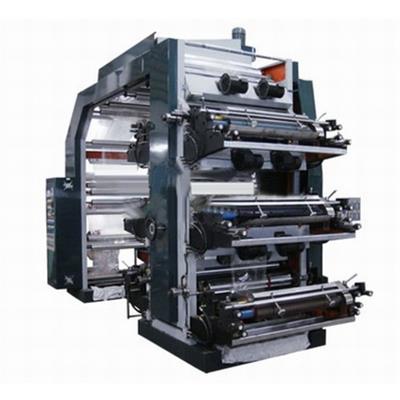

High Speed 6 color Flexo Printing Machine






 Flexgraphic printing machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for small mass lots, large variety production manufacturer. This machine is suitable for printing such packing materials as HDPE, LDPE polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Performance and Characteristics:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine
Automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are Inching / Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Pringting width


Item

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

2000mm

Printing color

6 color/colors ( PC : 6+0 , 5+1 , 4+2, 3+3 )


Printing material


LDPE:28 - 100μm;LDPE:30-100μm; LLDPE:25 -100μm;

CPP:20 - 60μm;PP:23 - 65μm ;NY:20 - 50μm;

PETP:16~60μm;OPP:18 -70μm;BOPP:17-60μm;

OPA:20 -60μm;Plating film:30-80μm;Aluminum:25~80μm;

Cellophane:30- 150g /m 2 ;Paper : 30 -150g /m 2



Printing length

7.5 ″ -40 ″ /7.5 ″ -50 ″ /7.5 ″ -60 ″ /7.5 ″ -70 ″ /7.5 ″ -80 ″

Printing plate lifting system

Pneumatic/Hydraulic press control/Menu

Mechanical speed

90m /min

Printing speed

70m /min

Anilox cylinder

Metal : 10DK-120DK( Germany )/200-500LPI( Japan )

Register precision

Longitude: ± 0.25mm , Transverse: ± 0.25mm

Rewinder/Unwinder DIA

φ 600


Master motor

3.7kw

3.7kw

5.5kw

5.5kw

7.5kw

7.5kw

11kw

11kw

unwinding motor

1.1kw

1.5kw

2.2kw

3.0kw

rewinding motor

1.5kw

2.2kw

3.0kw

3.7kw

Electrical heater

14kw

16kw

20kw

22kw

24kw

26kw

28kw

30kw

Blower of heater

1.5kw x2

1.1kw x 3

1.1kw x3

1.1kw x3

1.5kw x3

1.5kw x3

2.2kw x 3

2.2kw x3

Blower of nature wind

0.75KW

0.75KW

1.1KW

1.1KW

1.1KW

1.5KW

1.5KW

1.5KW

Inking motor

750w

750w

750w

750w

750w

750w

750w

750w

Bearing

Japan ( NSK)

Unilateral bearing

ASNU( Germany )

NET Weight

4500kg

4750kg

5000kg

5250kg

5500kg

5750kg

6000kg

6300kg

Master Power

25kw

27kw

34kw

37kw

43kw

47kw

55kw

58kw

Dimension
(L x W x H)

4.8m    x   1.8m    x  2.8m

4.8m    x   2.0m    x   2.8m

4.8m    x   2.2m    x   2.8m

4.8m    x   2.4m    x  2.8m

4.8m    x   2.6m    x   2.8m

4.8m x   2.8m x   2.8m

4.8m x   3.0m x   2.8m
